Product Introduction：

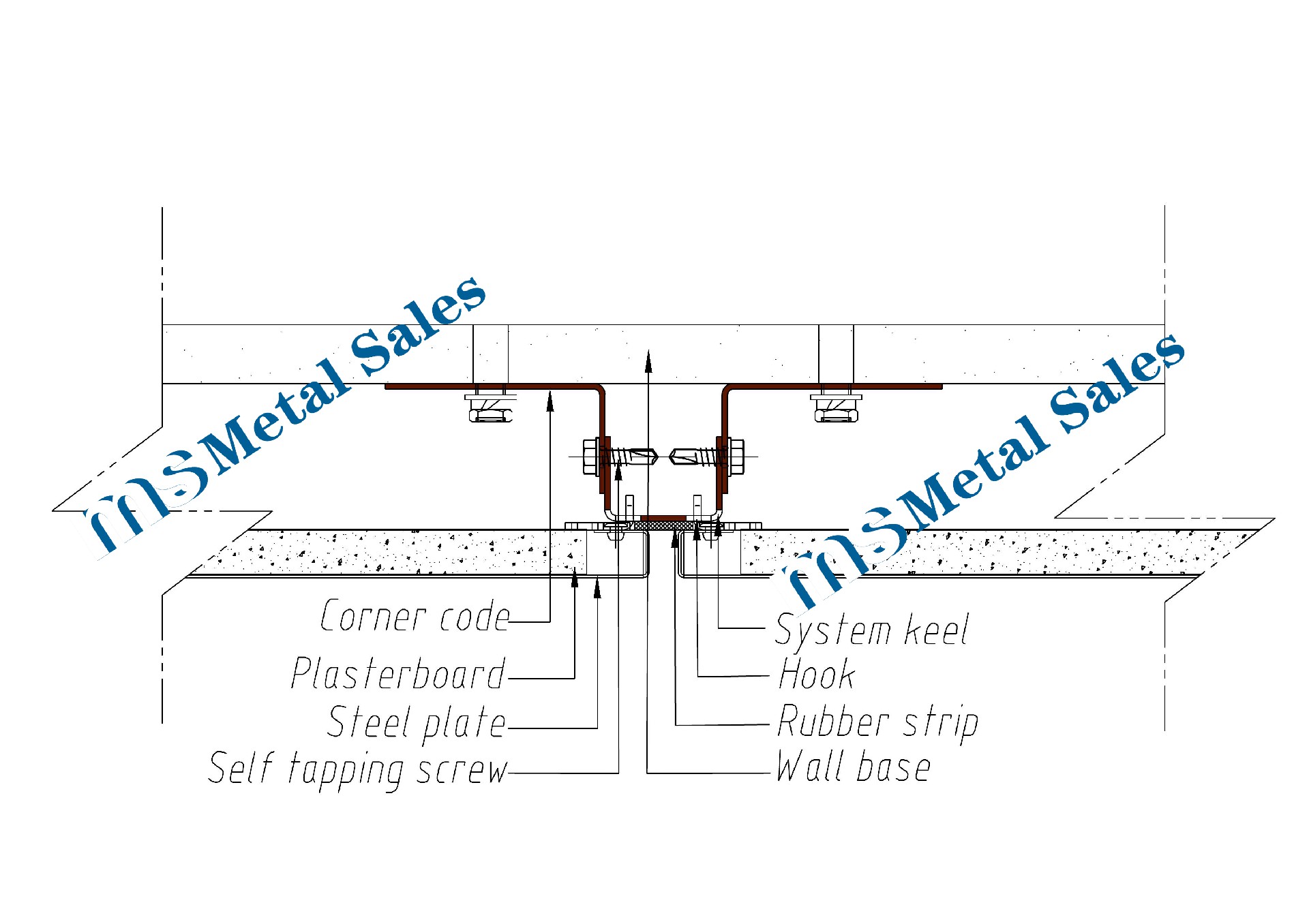

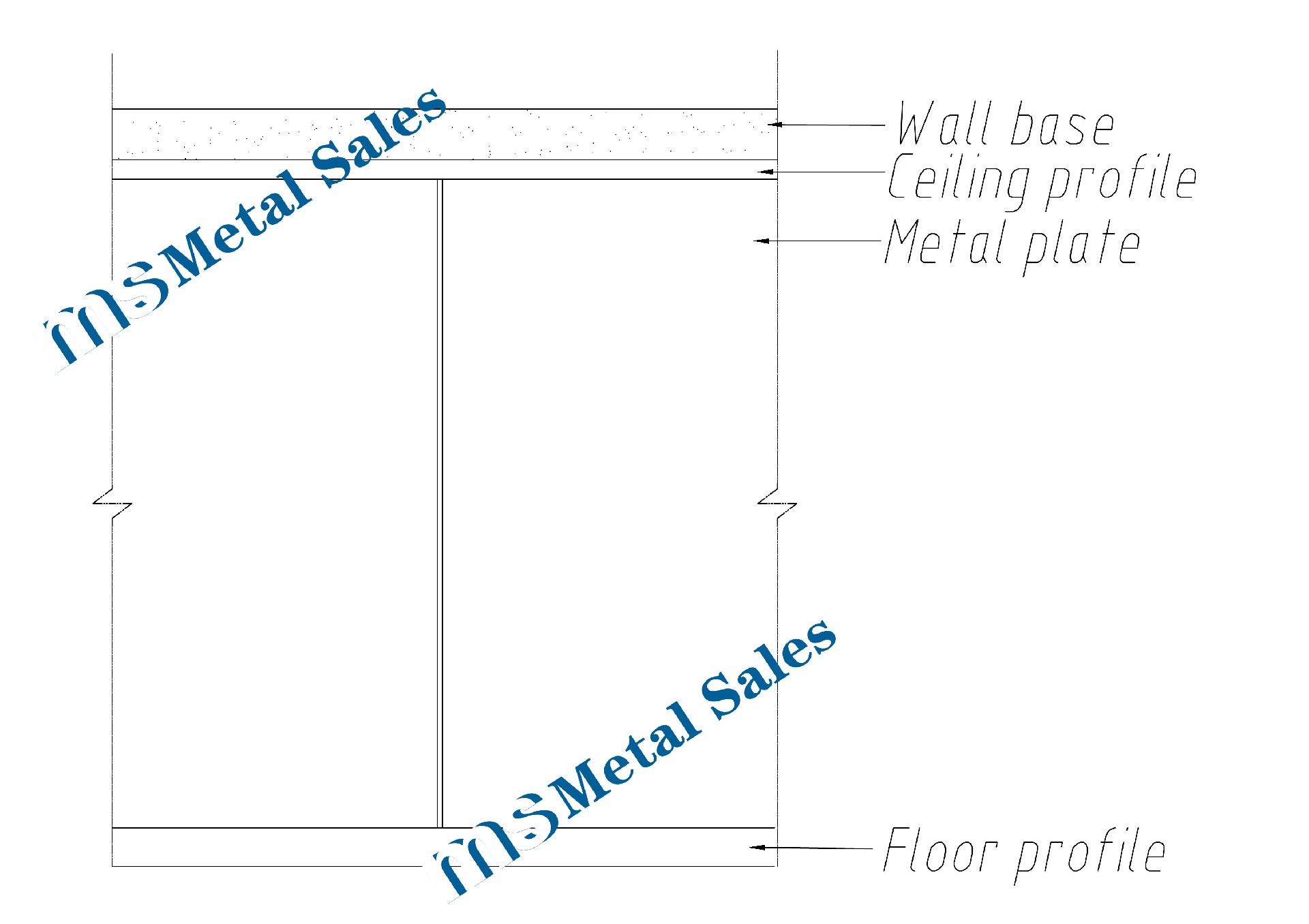

System：Hook mounted metal wallboard

Number：ms-W-910

Panel size：
Metal plate 13mm (≥ 0.8mm st©eel plate+12mm gypsuγm board)
13mm honeycomb aluminum plate, 13mm (≥ 0.8mm steel pl ate+corrugated)
18mm (≥ 0.8mm steel plate+honeycomb core+12mm g→ypsum board)
System thickness: ≥ 50mm
Module width: ≤ 1200mm
System height: normal 3000mm
Material: steel
Module gap: 0mm, 4mm, 6mm, 8mm
Ceiling keel size ≥ 20mm, floor keel size ≤ 60mm


Product Introduction：

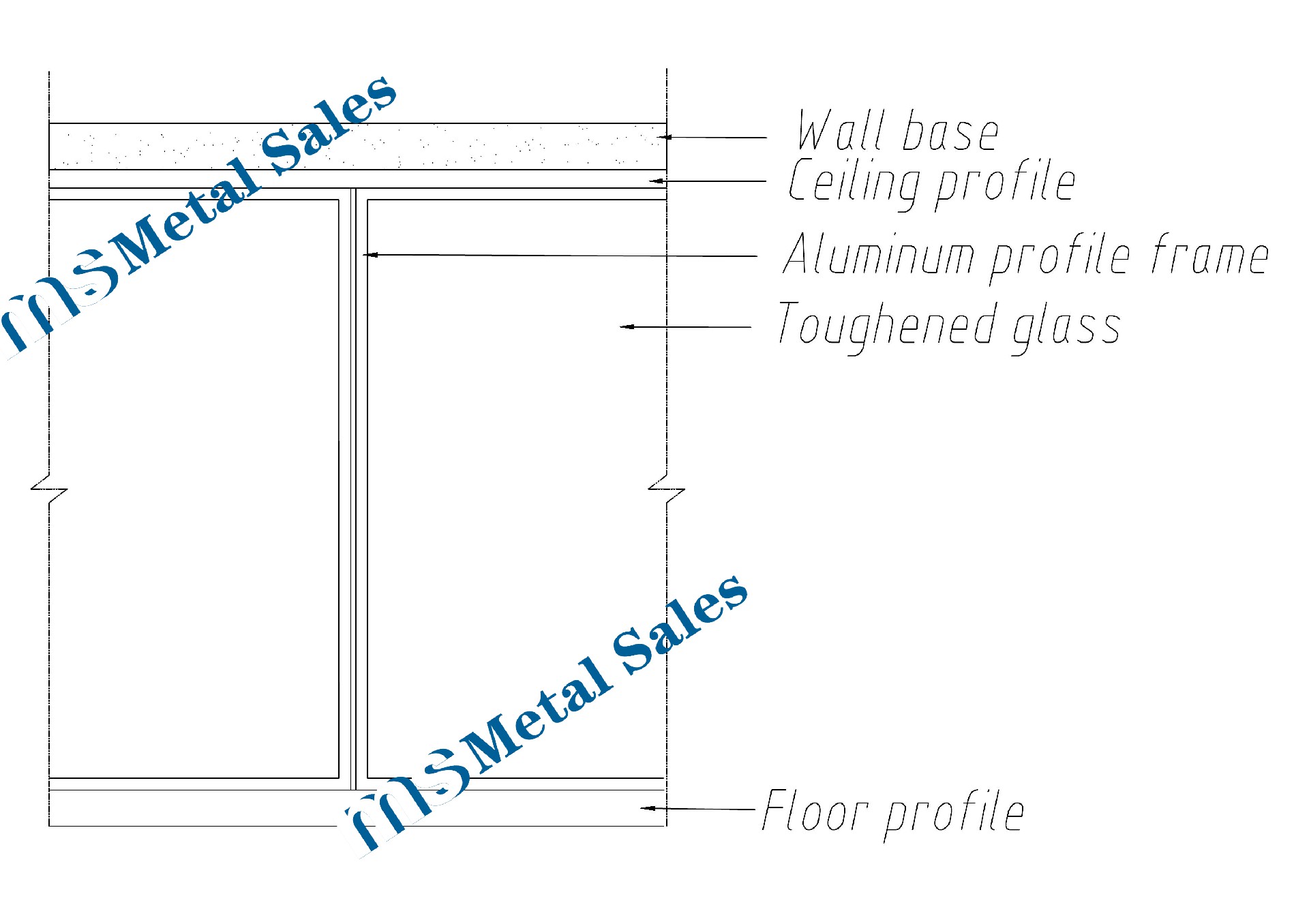

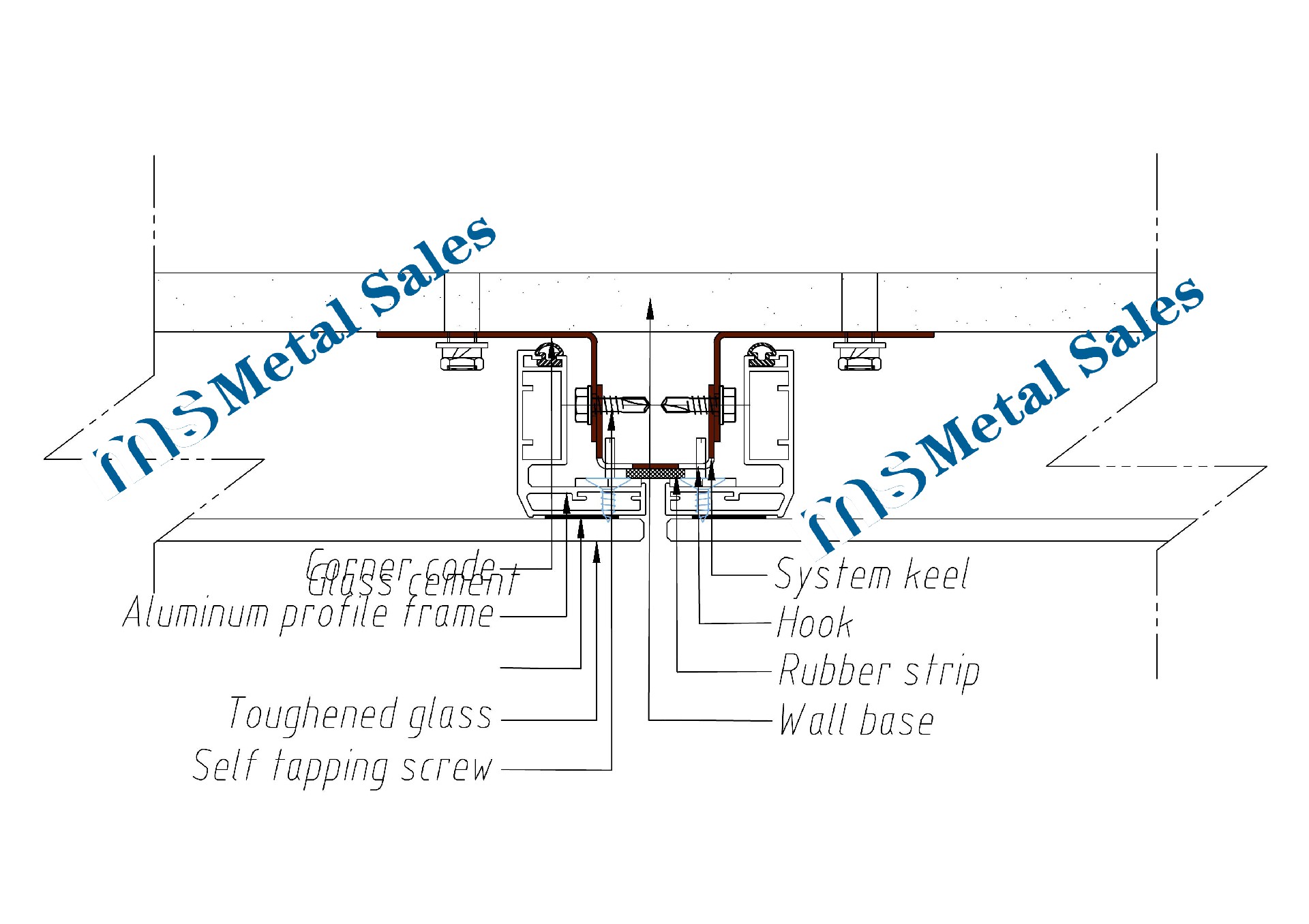

System：Hook type glass• wall

Number：ms-W-920

Panel size：
Glass thickness 6mm, 8mm
System thickness: ≥ 50®mm
Module width: ≤ 1200mm
System height: normal 3000mm
Material: steel
Module gap: 0mm, 4mm, 6mm, 8mm
Ceiling keel size ≥ 20mm, floor keel si♥ze ≤ 60mm


Product Introduction：

System：Card type metal wallboa&rd

Number：ms-W-930

Panel size：
Metal plate 13mm (≥ 0.8mm steel plate+12mm gypsum board)
13mm honeycomb aluminum plate, 13mm (≥ ☆0.8mm steel plate+corr™ugated)
System thickness: ≥ 50mm
Module width: ≤ 1200mm
System height: normal 3000mm
Material: steel
Module gap: 6mm
Ceiling keel size ≥ ∑20mm, floor keel size ≤ 60mm


Product Introduction：

System：Battered metal wallboard

Number：ms-W-940

Panel size：
Metal plate 13mm (≥ 0.8mm steel plate+12mm gypsum board)
13mm honeycomb aluminumε plate, 13mm (≥ 0.8mm steel plate+corrugated)
18mm (≥ 0.8mm steel plate+honeycomb core+12mm gypsum b'oard)
System thickness: ≥ 50mm
Module width: ≤ 1200mm
System height: normal 3000mm
Material: steel
Module gap: 12mm
Ceiling keel size ≥ 20mm, floor keel siz★e ≤ 60mm


Product Introduction：

System：Inserted metal wallboard

Number：ms-W-950

Panel size：
Metal plate 13mm (≥ 0.8mm​ steel plate+12mm gypsum board)
13mm honeycomb aluminum plate, 13mm (≥ 0.8mm steel plate+corr≈ugated)
18mm (≥ 0.8mm steel plate+honeycomb core+≥12mm gypsum board)
System thickness: ≥ 50mm
Module width: ≤ 1200mm
System height: normal 3000mm
Material: steel
Module gap: 0mm
Ceiling keel size ≥ 20mm, floor keel size ≤‌ 60mm
