Product Introduction：

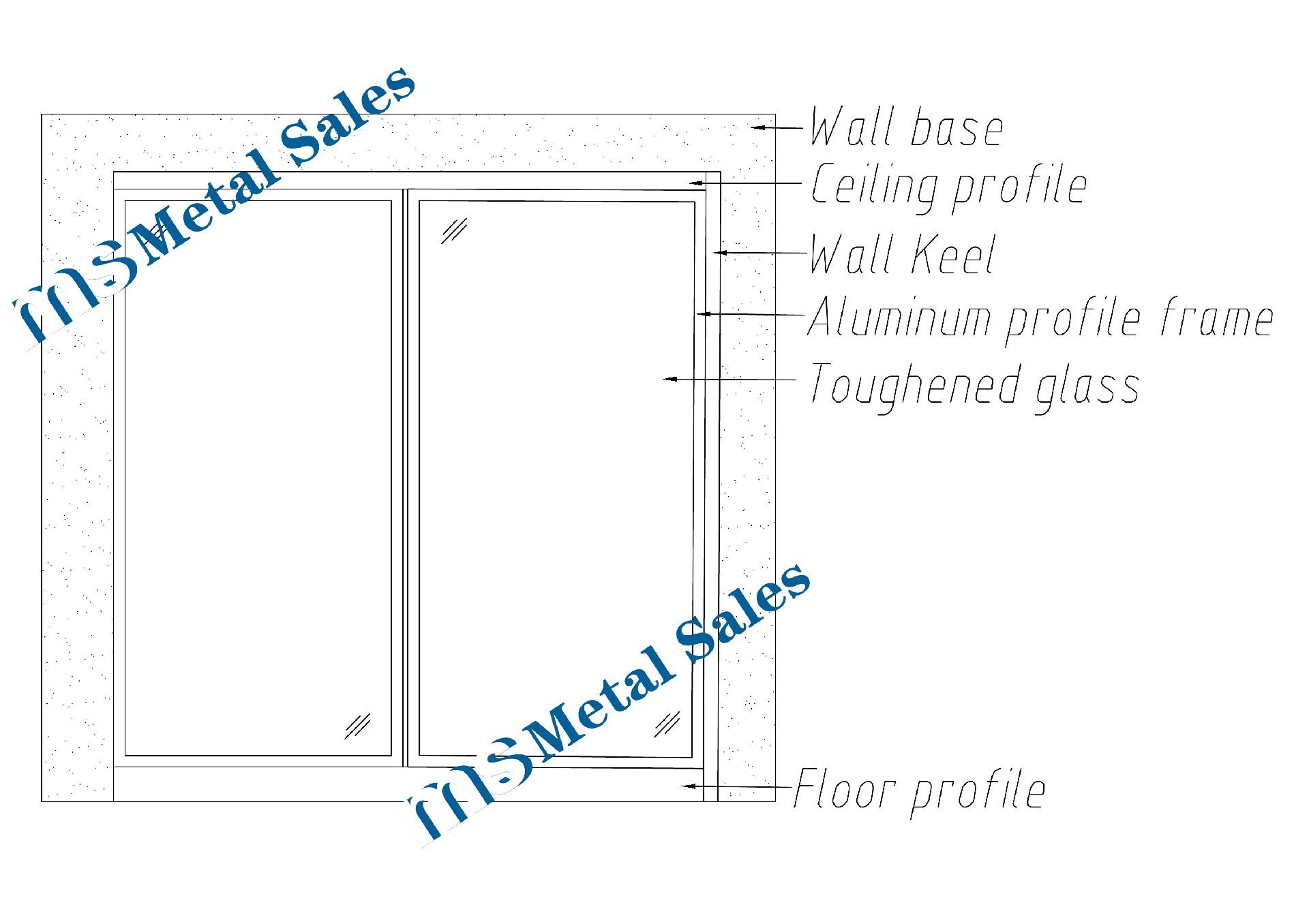

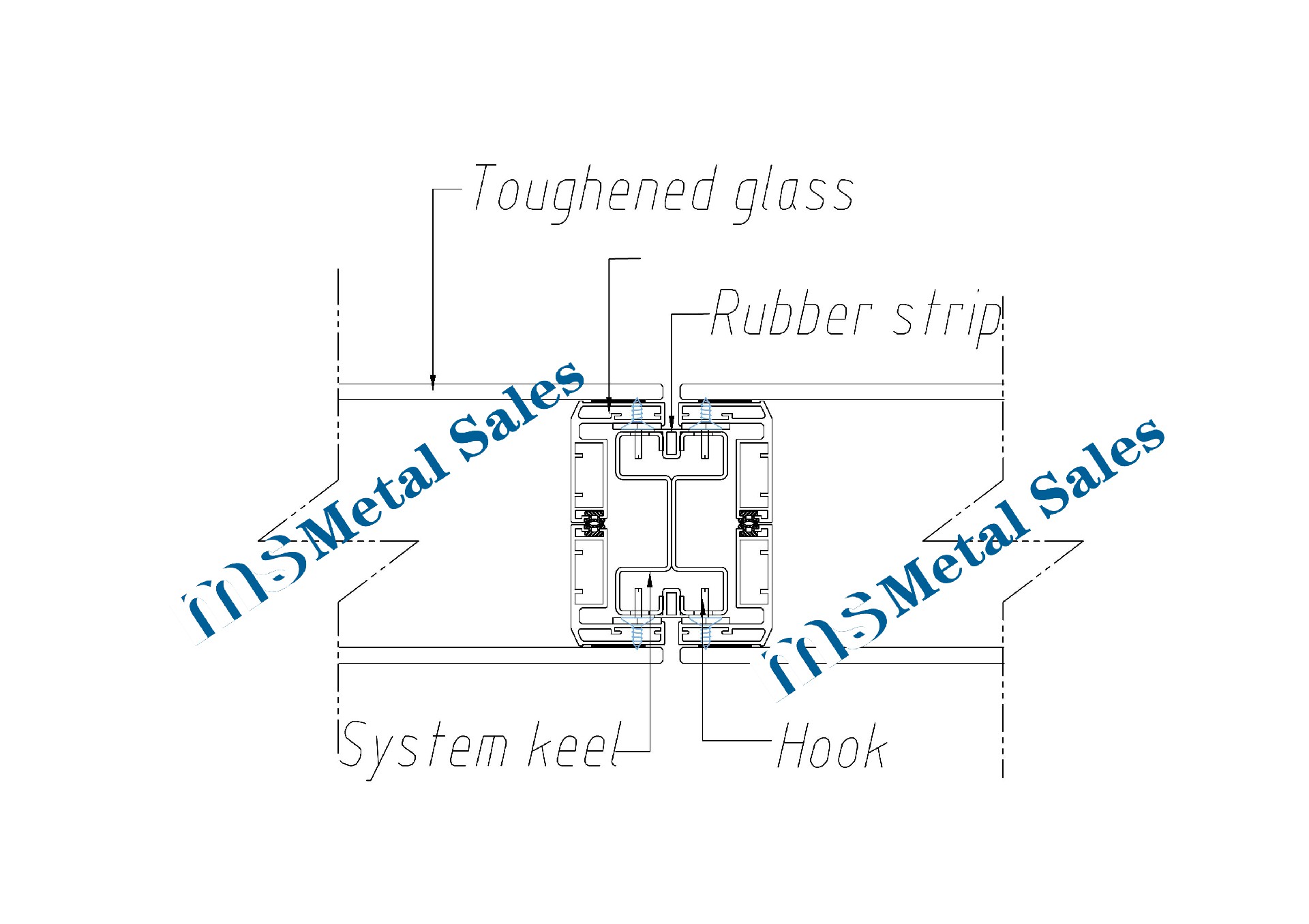

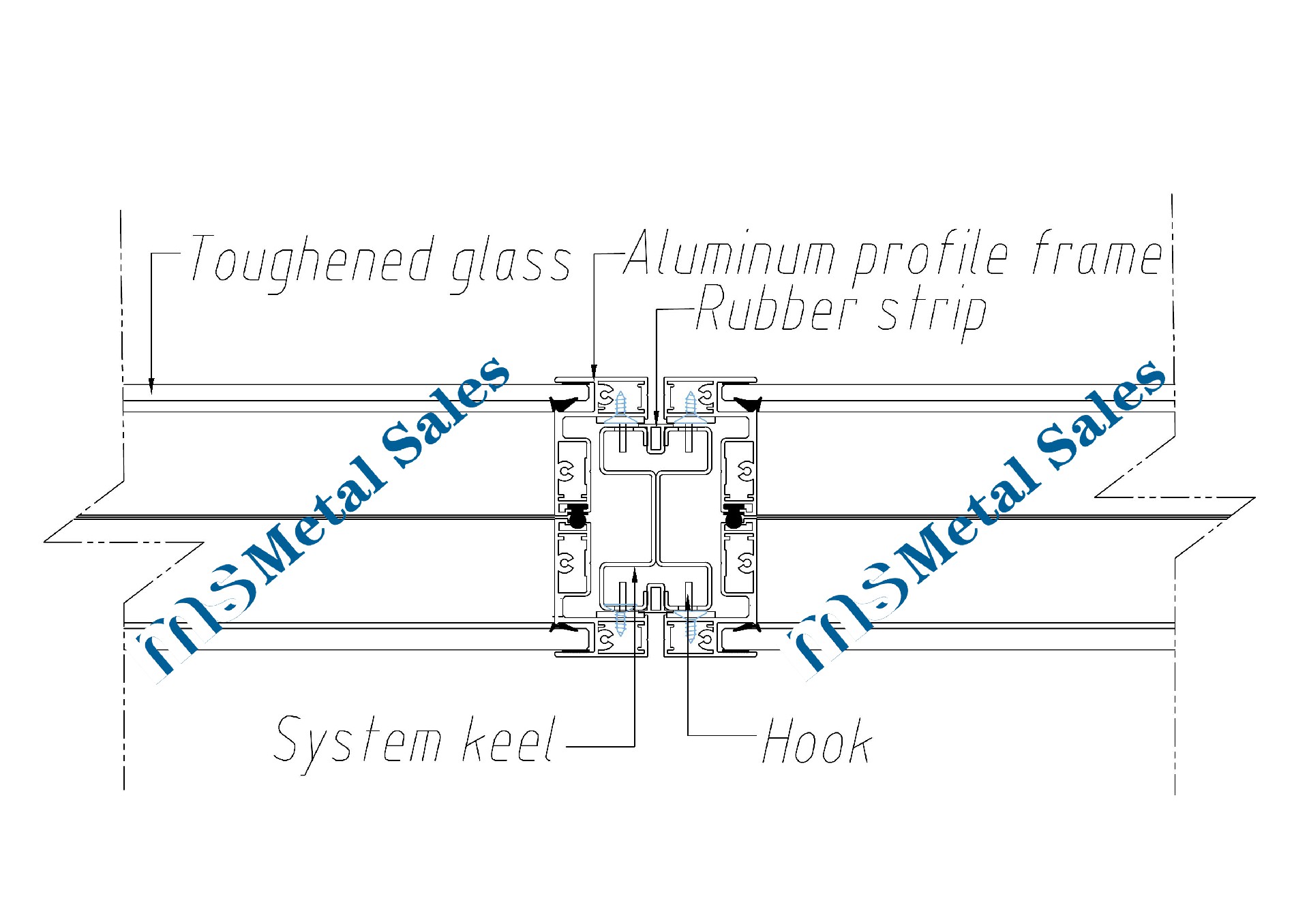

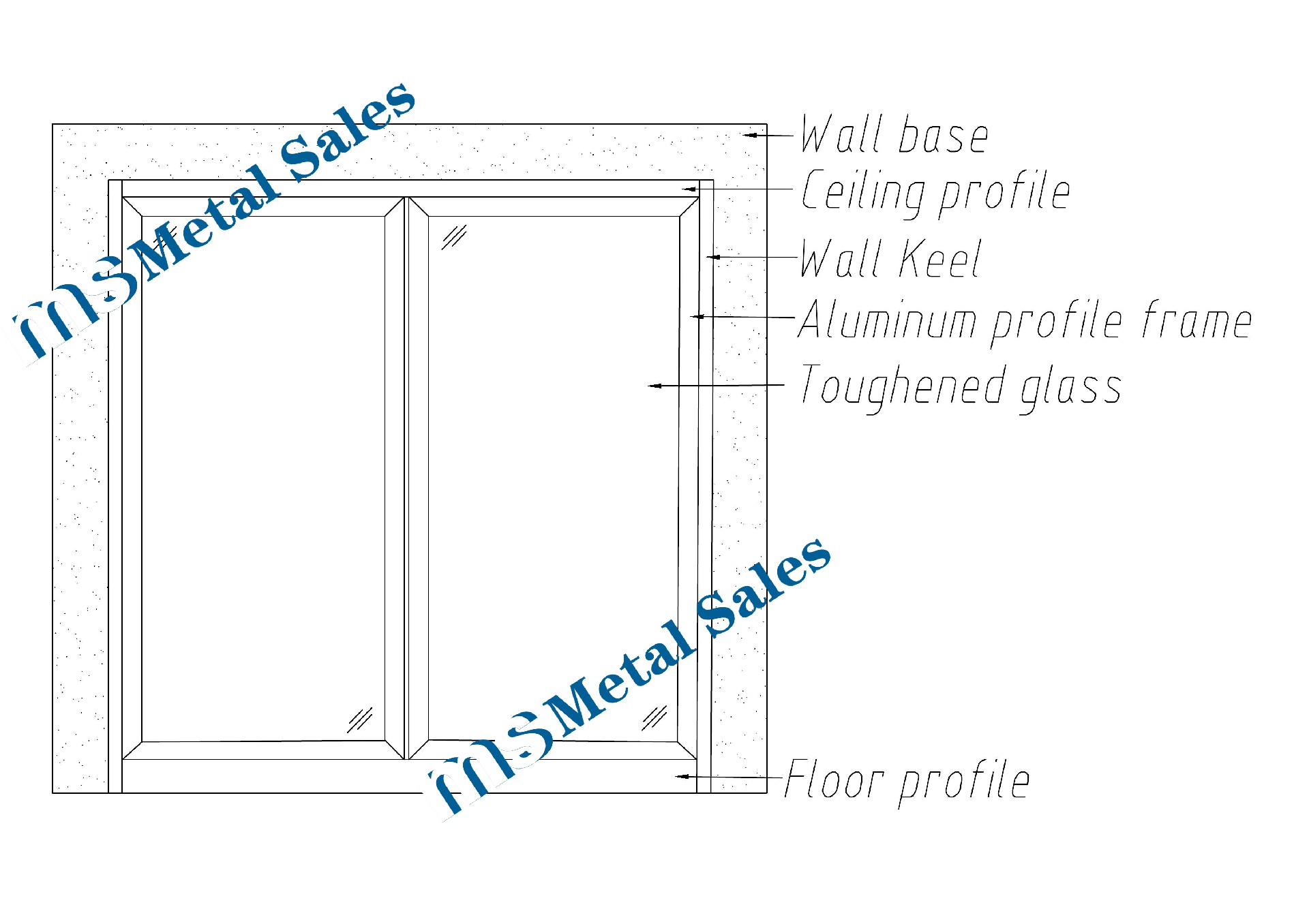

System：Open frame double glass hanging syste'm

Number：ms-P-425

Panel size：
Double glass 6+8mm
System thickness: 105mm
Module width: ≤ 1600mm
System height: normal 3000mm
Material: inner steel and outer aluminum
Width of aluminum frame: 35mm
Module gap: 0mm, 4mm, 6mm, 8mm
Ceiling keel size ≥ 20mm, floor keel s¶ize ≤ 60mm


Product Introduction：

System：Hidden frame double glass hanging system

Number：ms-P-437

Panel size：
Double glass 6+8mm
System thickness: 105mm
Module width: ≤ 1600mm
System height: normal 3000mm
Material: inner steel and outer aluminum
Width of aluminum frame: 35mm
Module gap: 0mm, 4mm, 6mm, 8mm
Ceiling keel size ≥ 20mm, •floor keel size ≤ 60mm


Product Introduction：

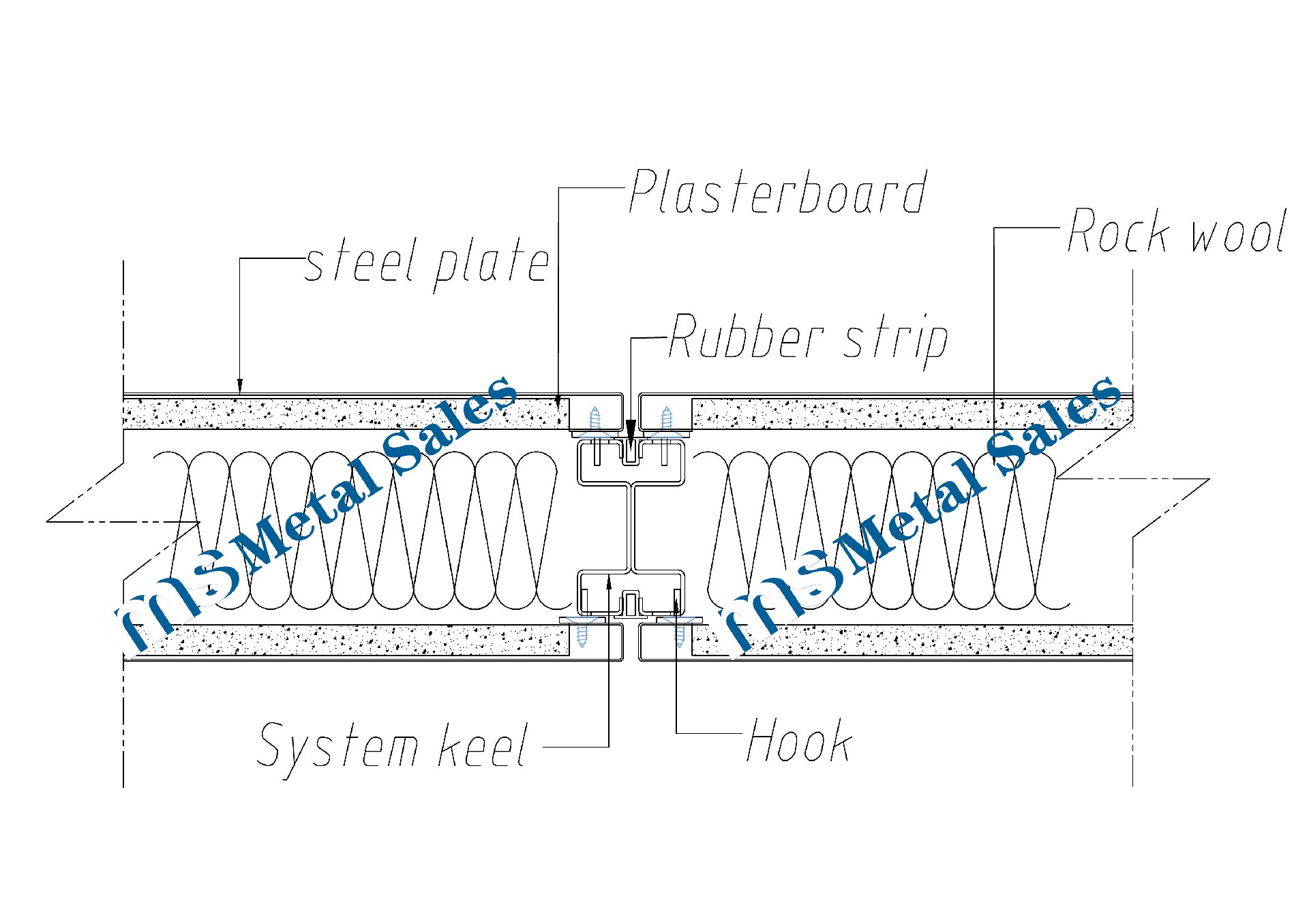

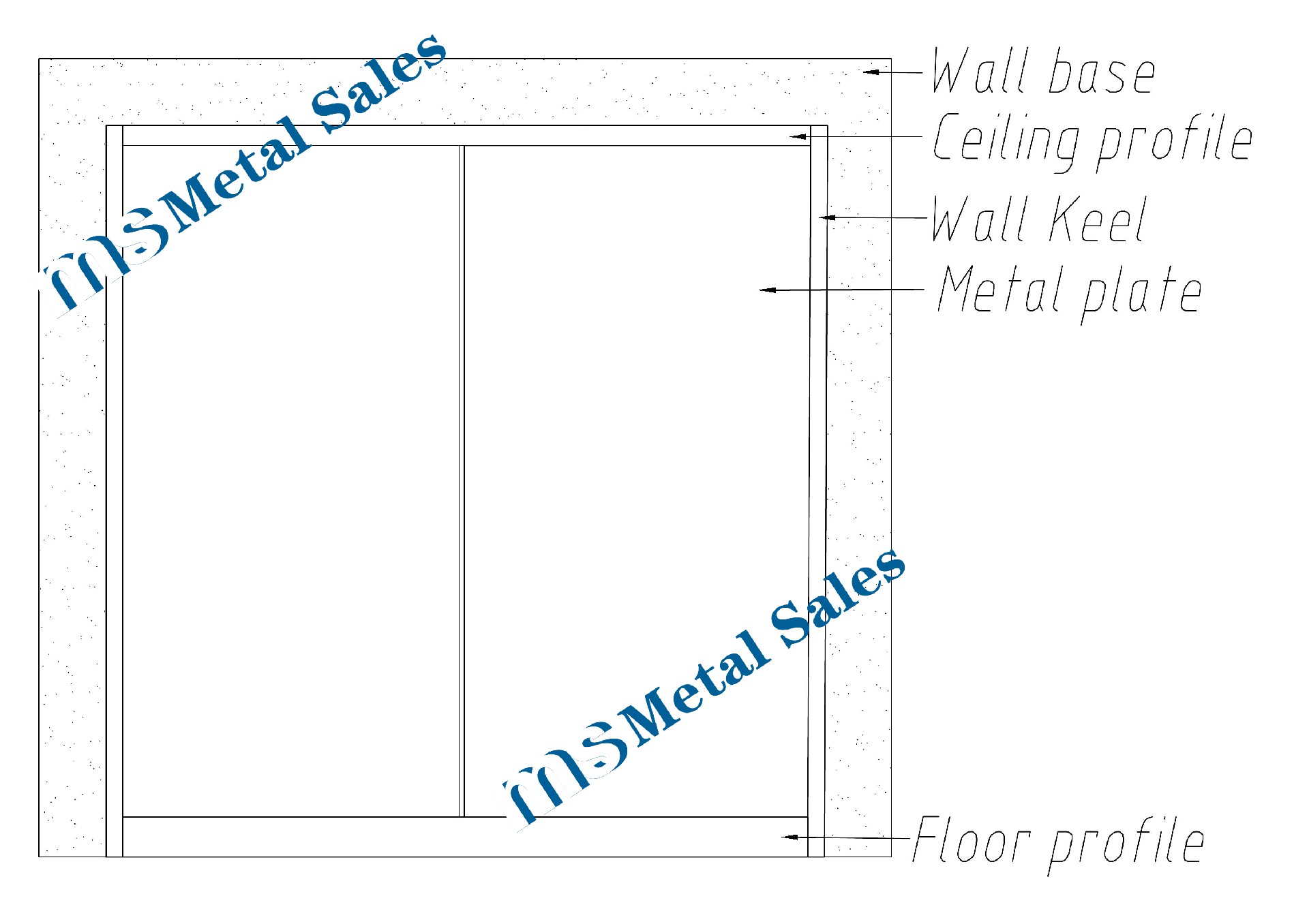

System：Double metal plate hanging system

Number：ms-P-400

Panel size：
Double metal plate 13mm (≥ 0.8mm steel plate+12mm gypsum board)
System thickness: 10λ5mm
Module width: ≤ 1200mm
System height: normal 3000mm
Material: steel
Module gap: 0mm, 4mm, 6mm, 8mm
Ceiling keel size ≥ 20mm, floor keel size♥ ≤ 60mm


Product Introduction：

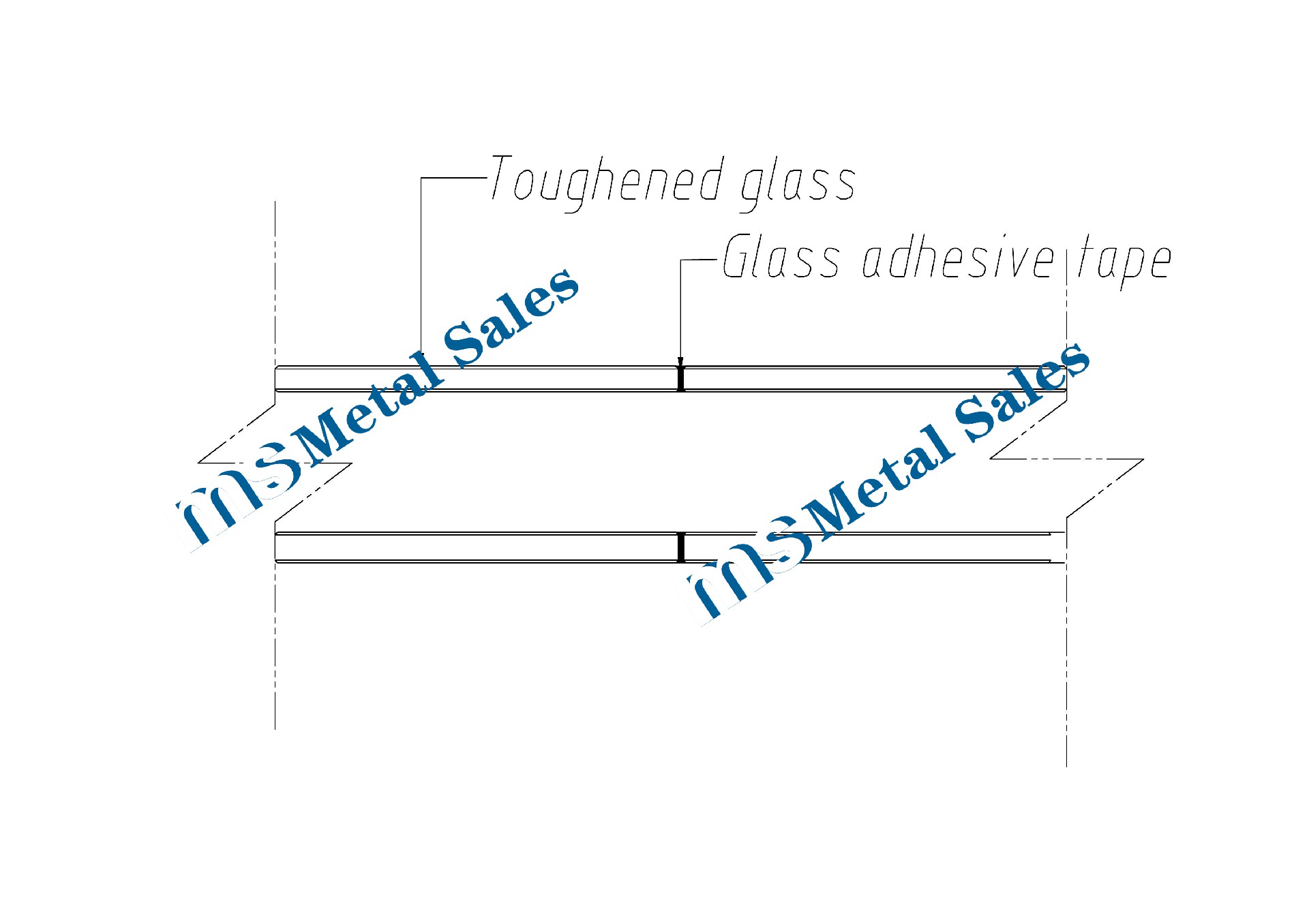

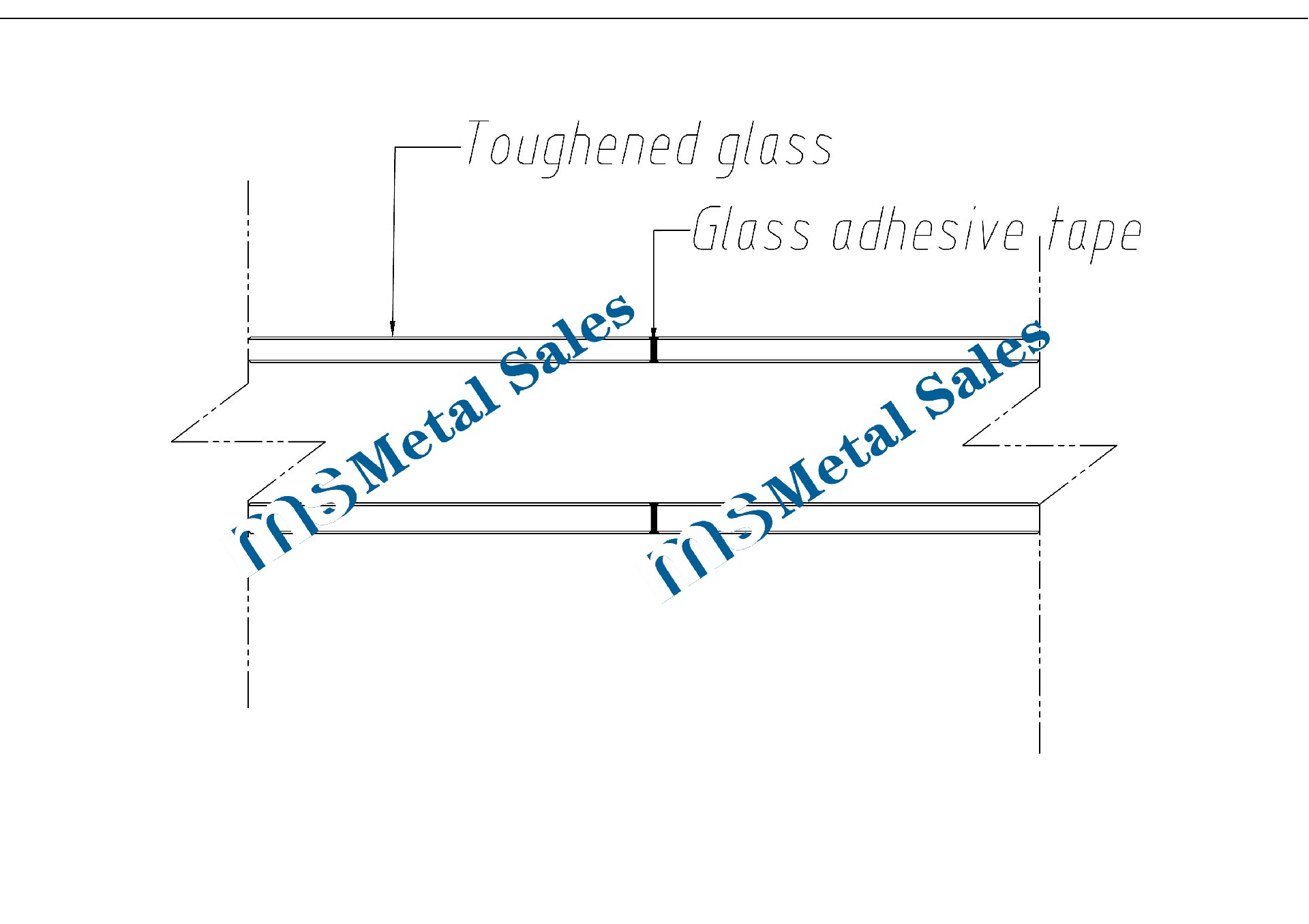

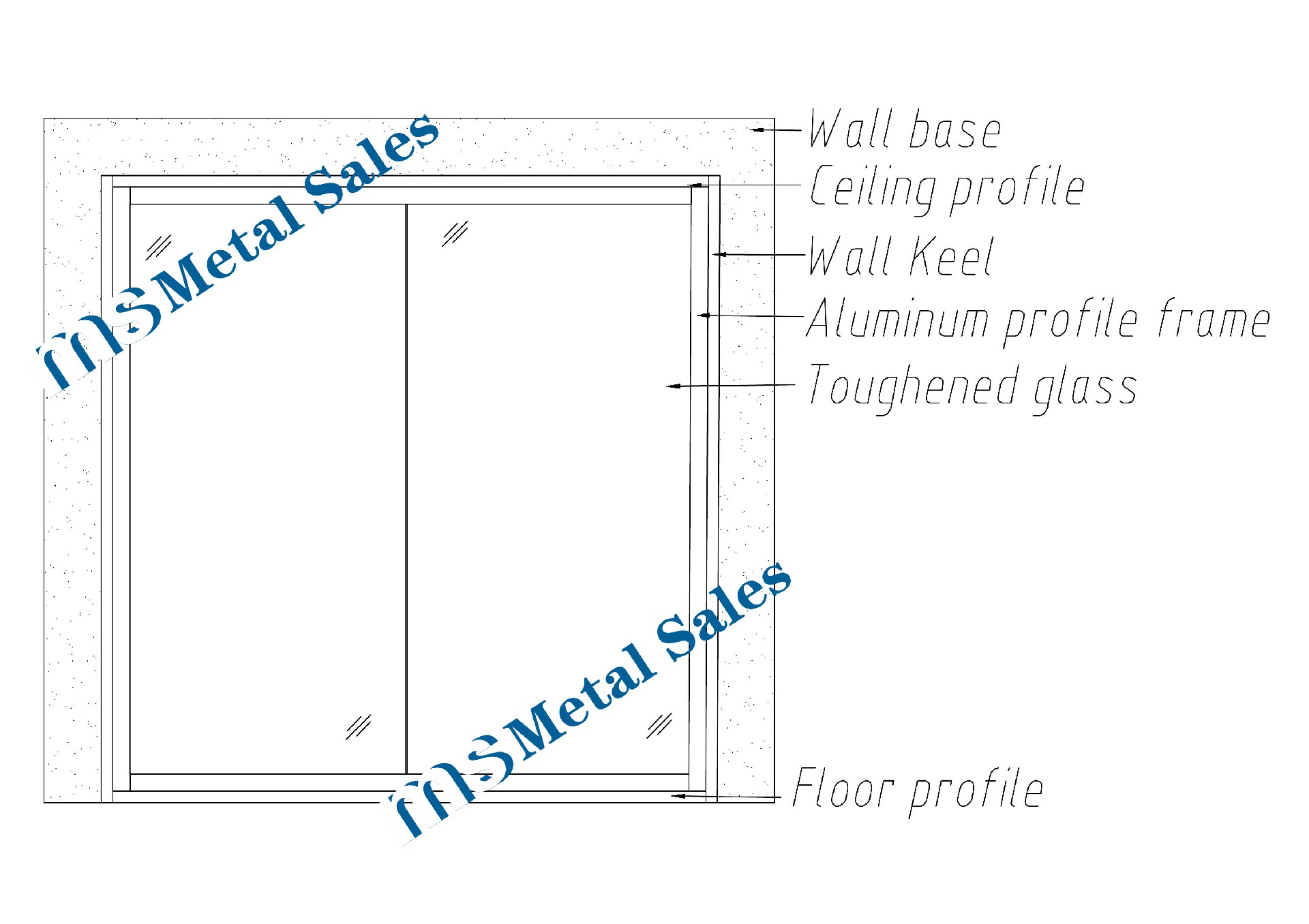

System：Double panoramic glass partition

Number：ms-P-622A

Panel size：
Double glazing 10+10✔mm, 10+12mm, 12+12mm
System thickness: 105mm
Module width: ≤ 1200mm
System height: normal ✘3000mm
Material: aluminum profile
Aluminum frame width: 30mm
Module gap: 2mm, 3mm
Ceiling keel size 20mm, floor keel size 20mm


Product Introduction：←

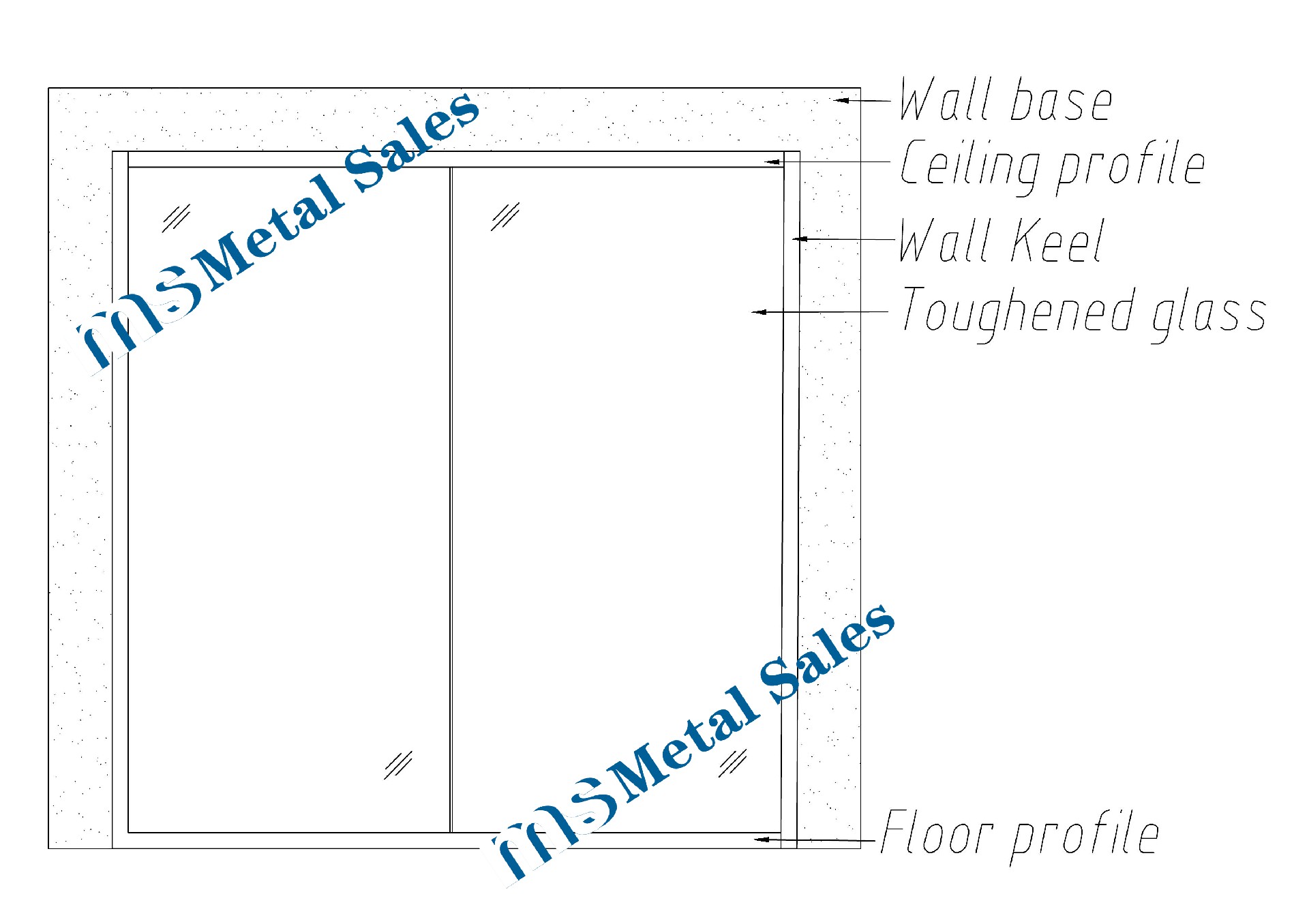

System：Double panoramic glass partiti✘on

Number：ms-P-622B

Panel size：
Double glazing 10+10mm, 10+12mm, 12+12mm
System thickness: 83mm
Module width: ≤ 1200mm
System height: normal 3000mm
Material: aluminum profile
Width of aluminum frame: 25mm
Module gap: 2mm, 3mm
Ceiling keel size 0mm, floor keel size 0mm


Product Introduction：

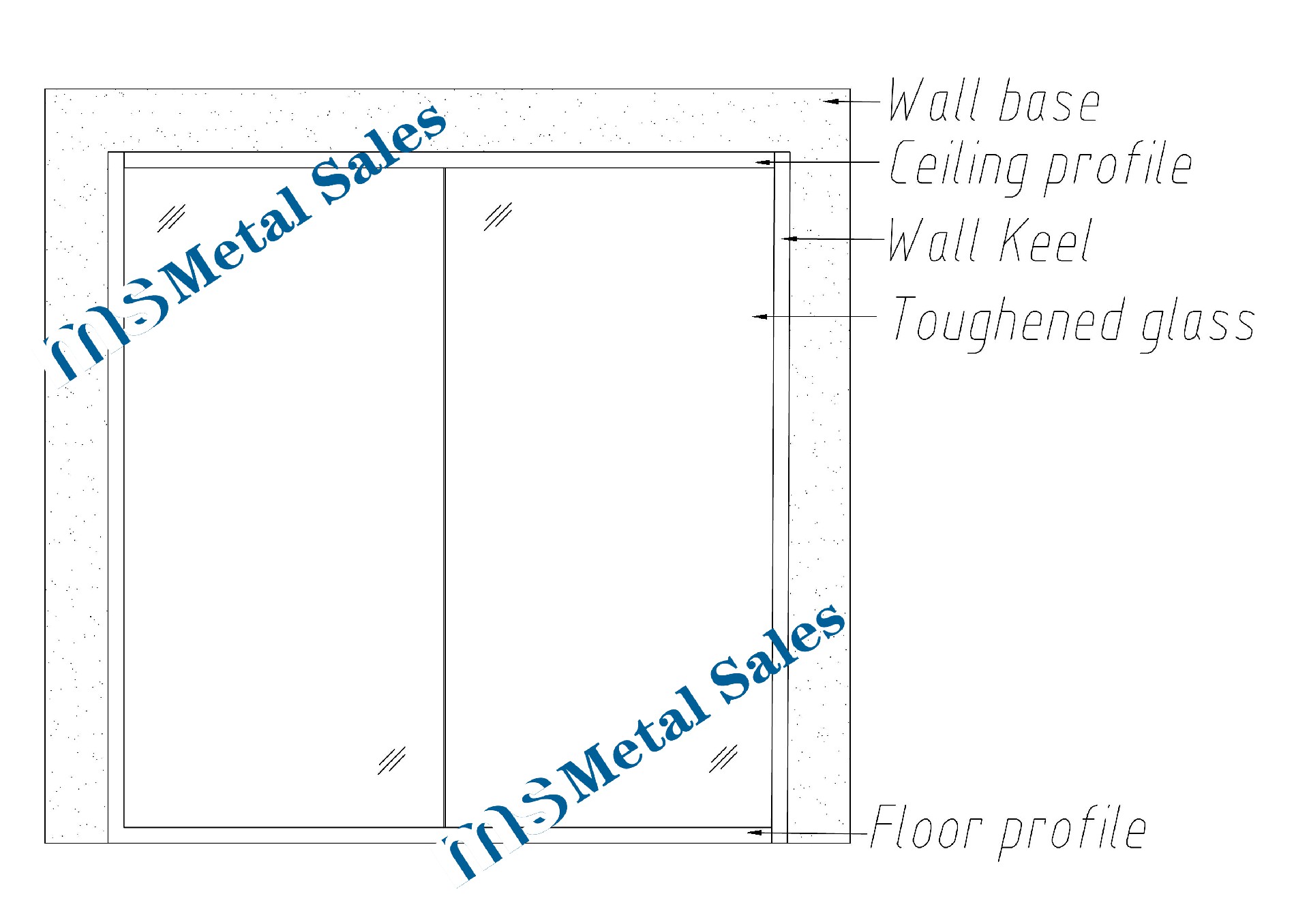

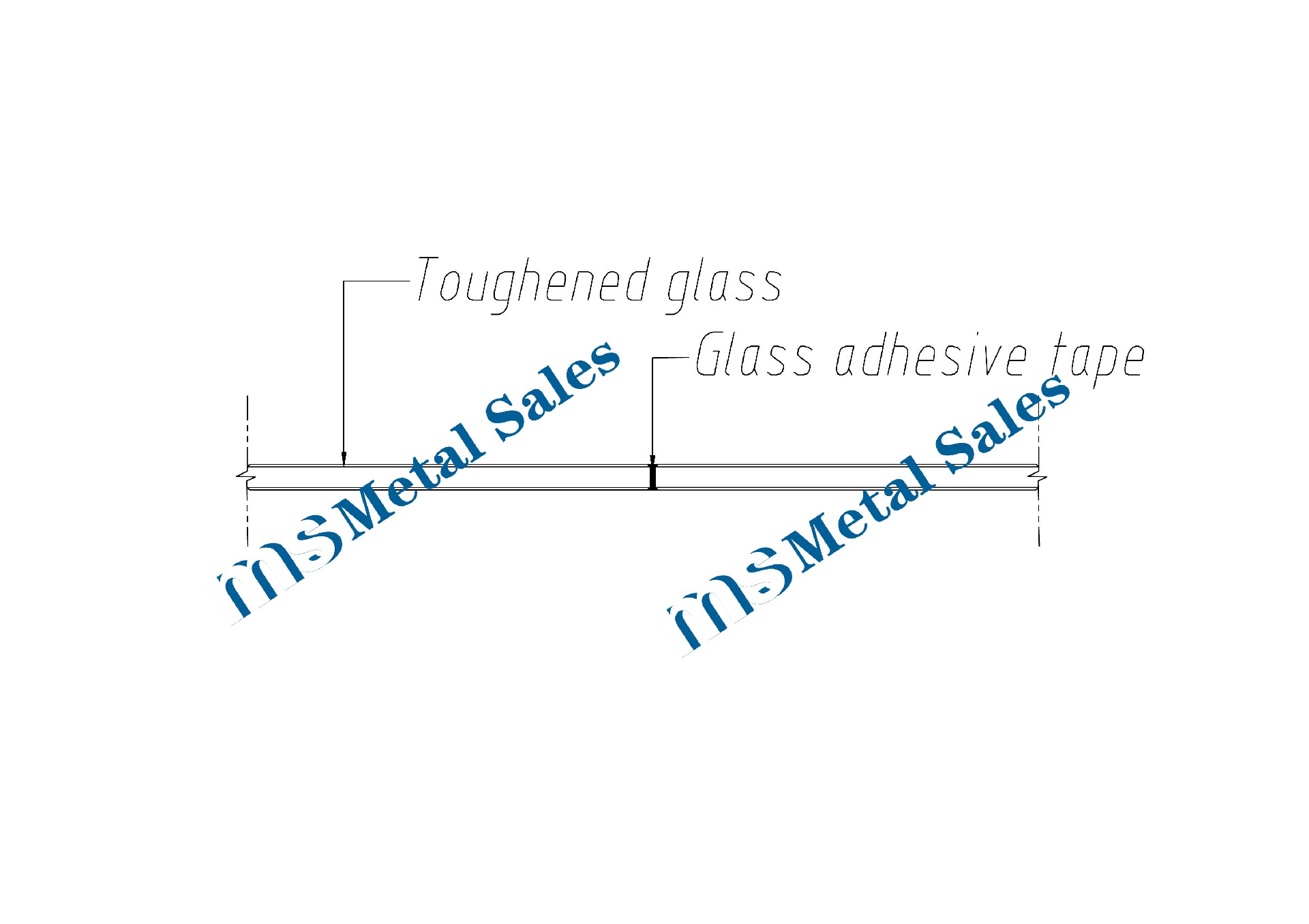

System：Single layer panoramic glass ¥partition（Class C 1-hour）

Number：ms-P-620

Panel size：
Single glass 10mm, 12mm, 16mm
System thickness: 35mm
Module width: ≤ 1200mm
System height: normal 3000mm
Material: aluminum profile
Width of aluminum frame: 25mm
Module gap: 2mm, 3mm


Product Introduction：

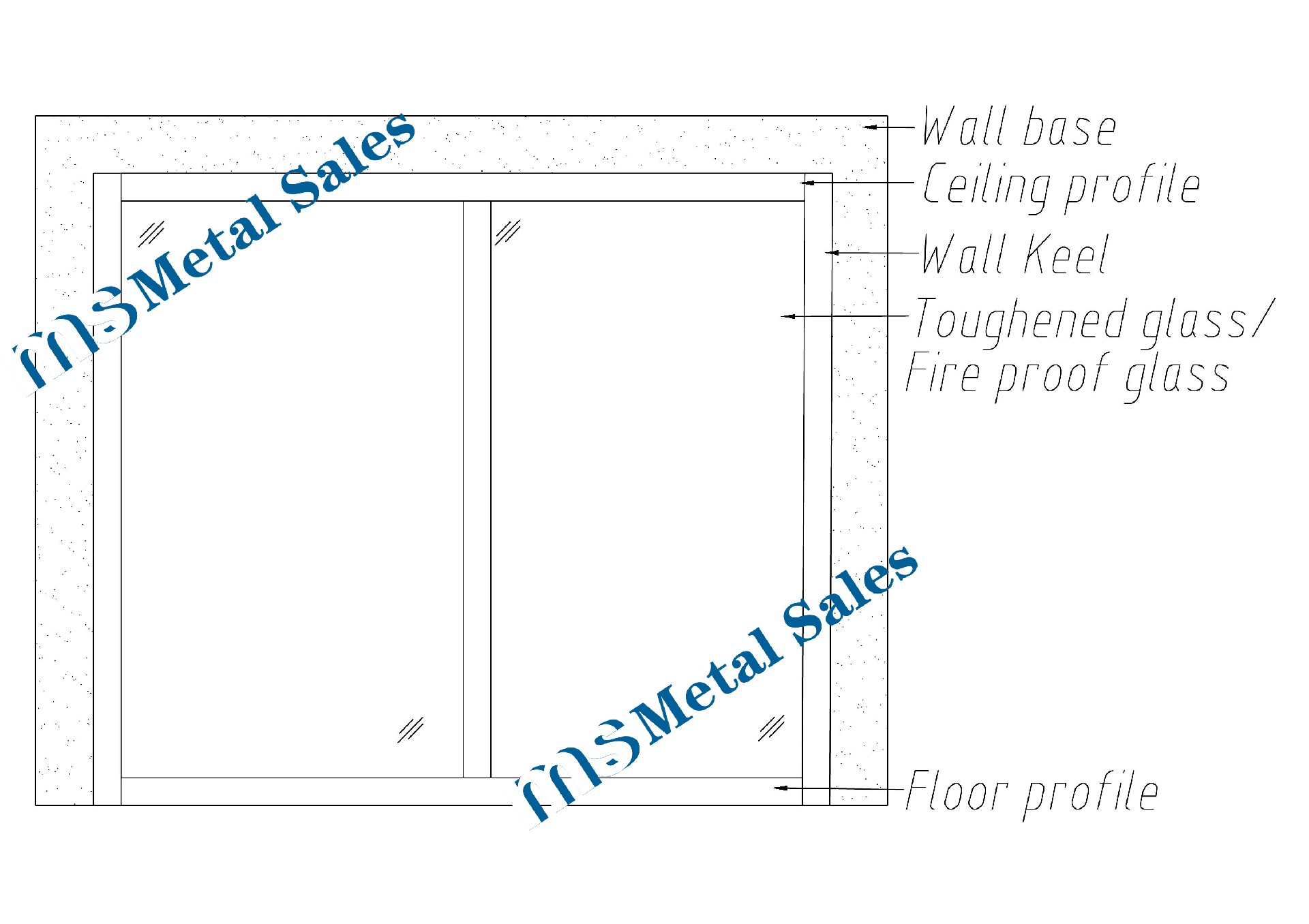

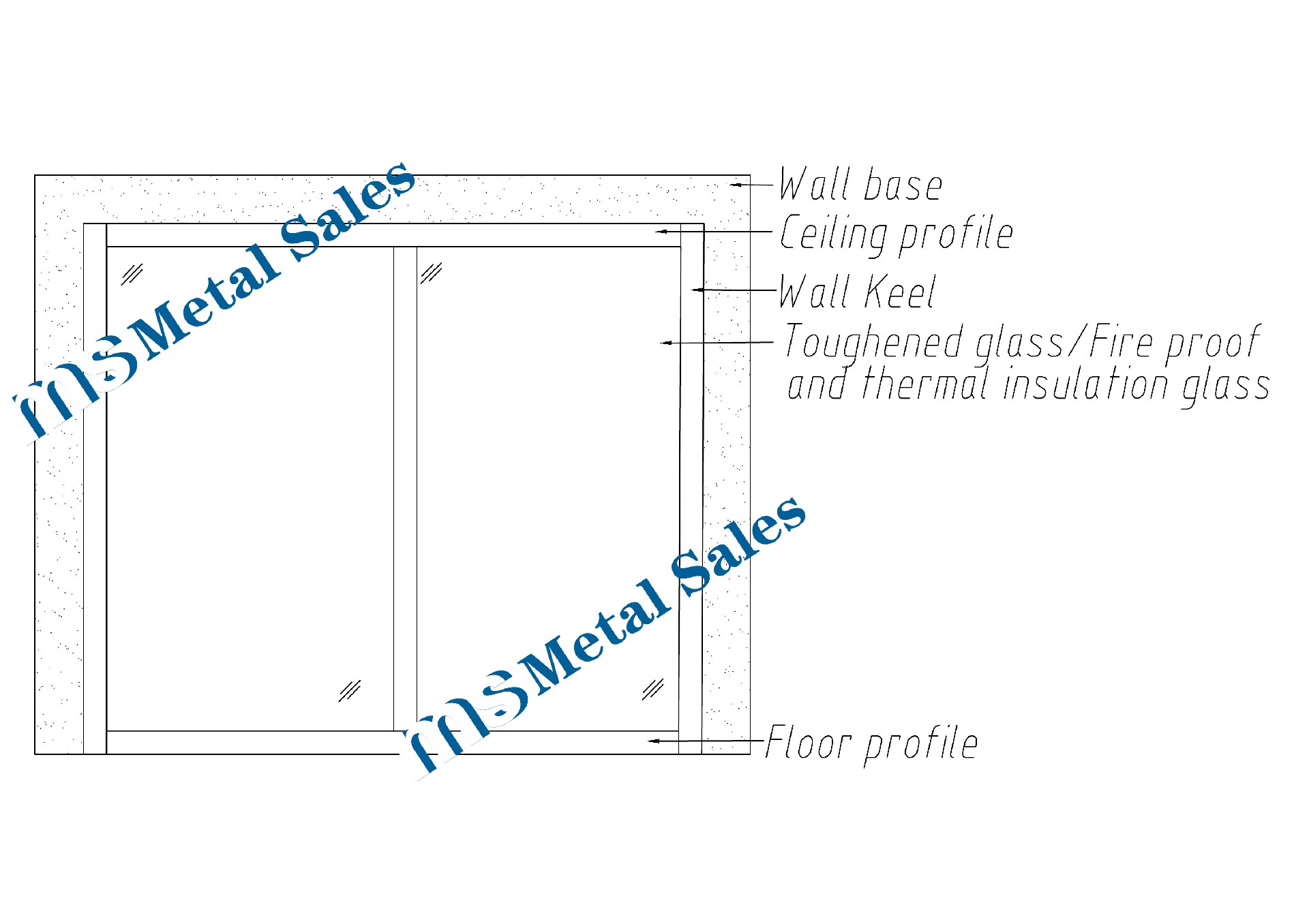

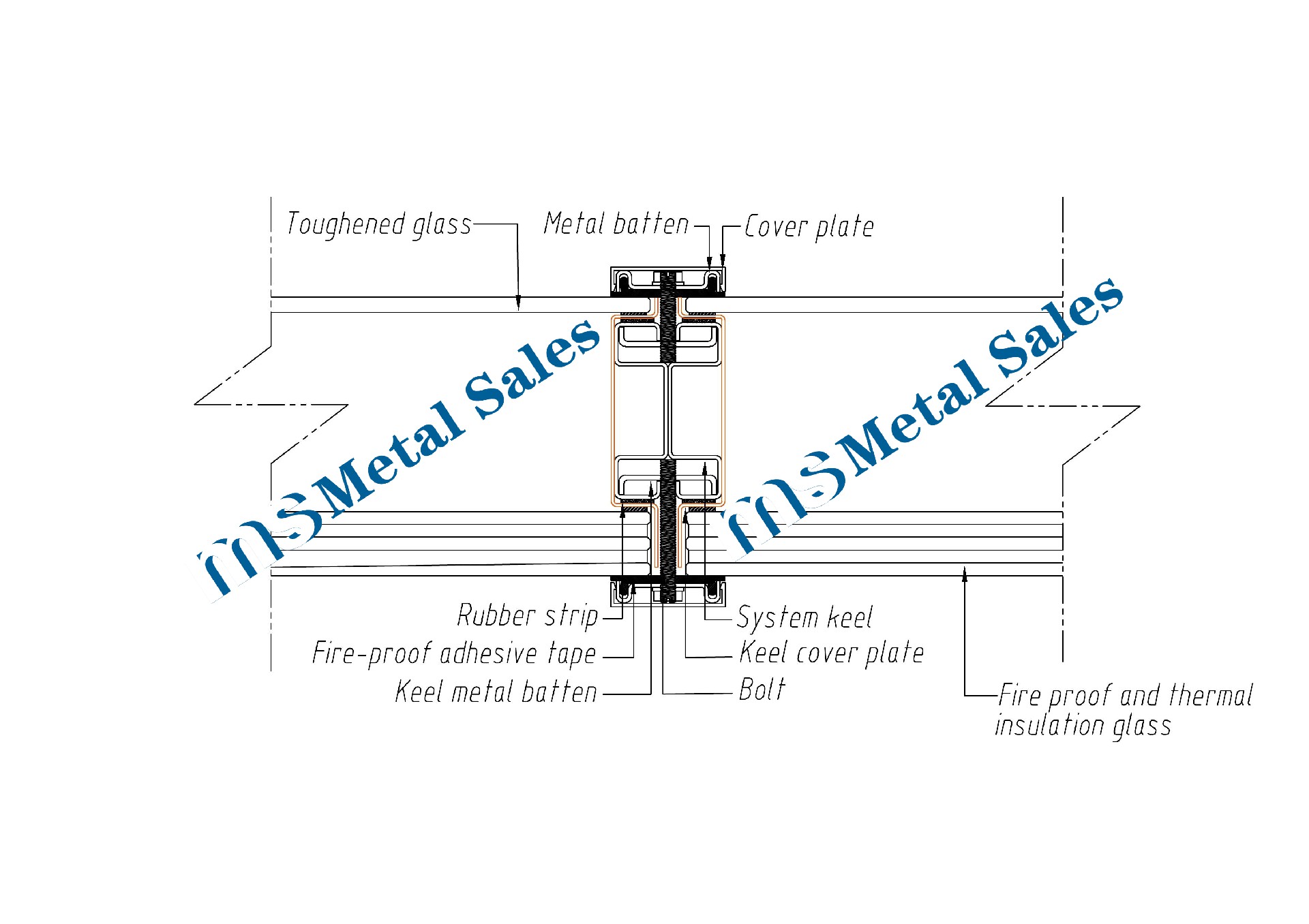

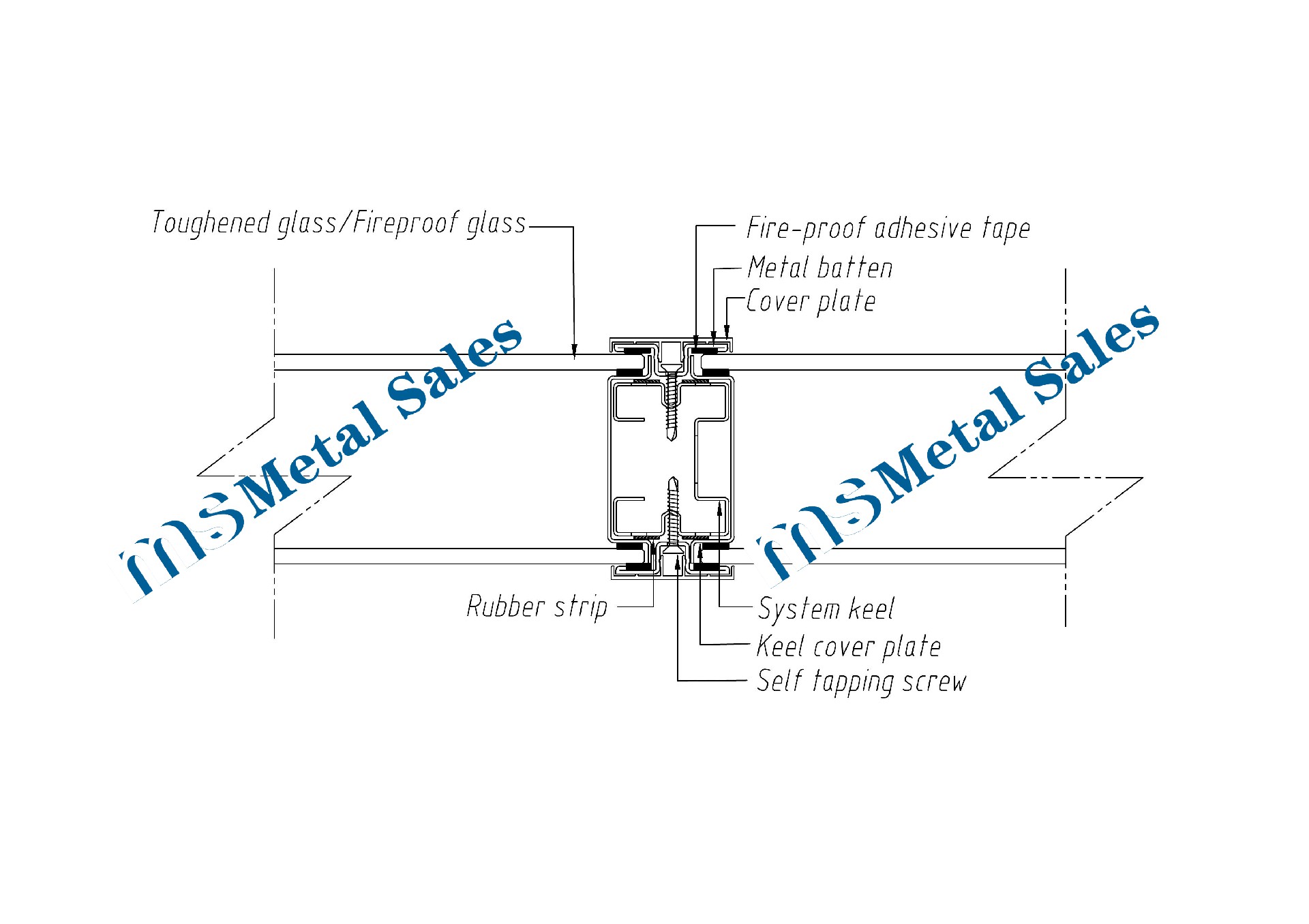

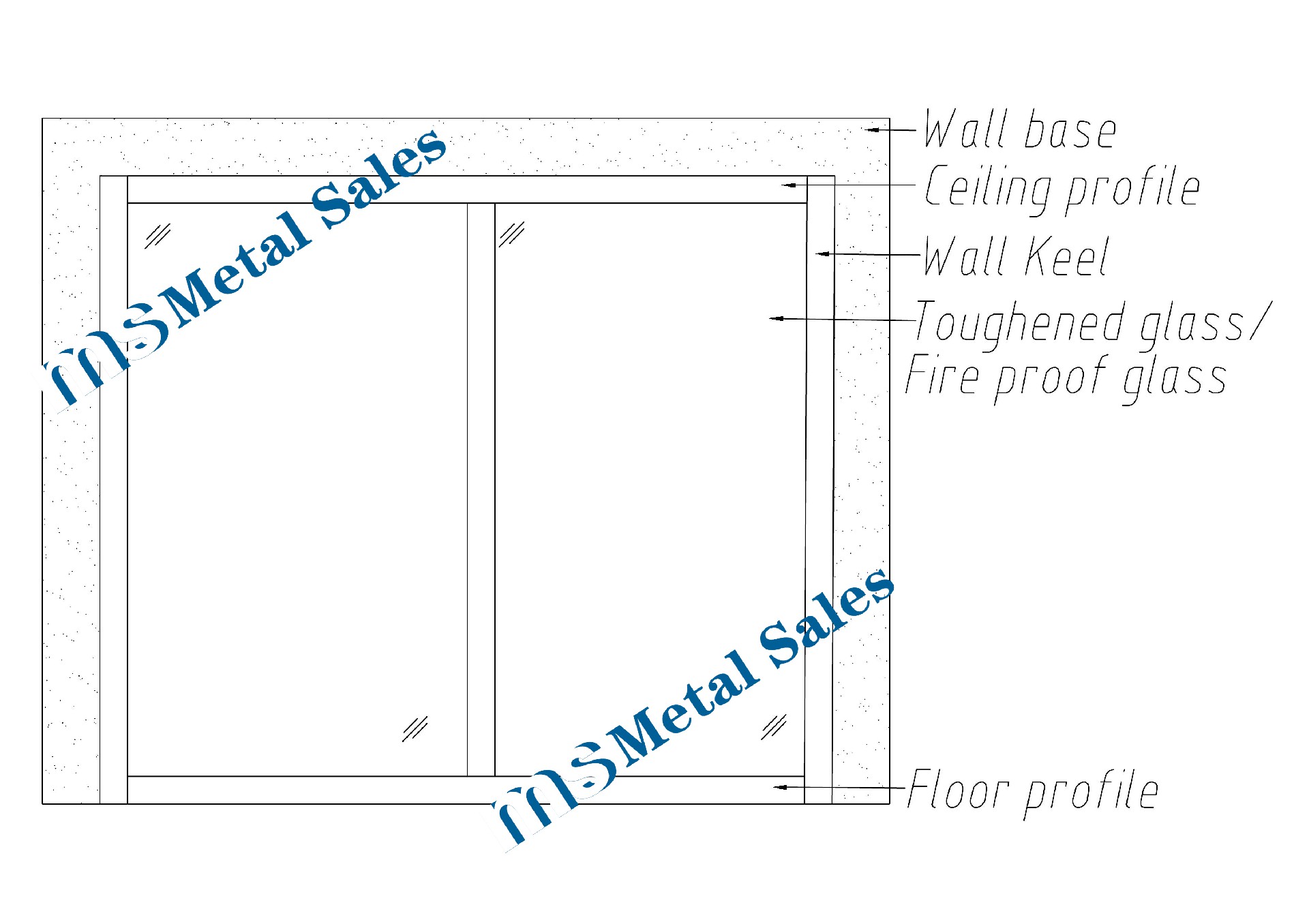

System：Class C 1-hour double glass fire partition system

Number：ms-P-110

Panel size：
Double glass single side glass fireproof 6+8mm, 8+8mm, 8+10mmε
10+10mm、10+12mm、12+12mm
System thickness: 105mm
Module width: ≤ 1200mm
System height: normal 300§0mm
Material: all steel
Width of steel frame: 48mm


Product Introduction：

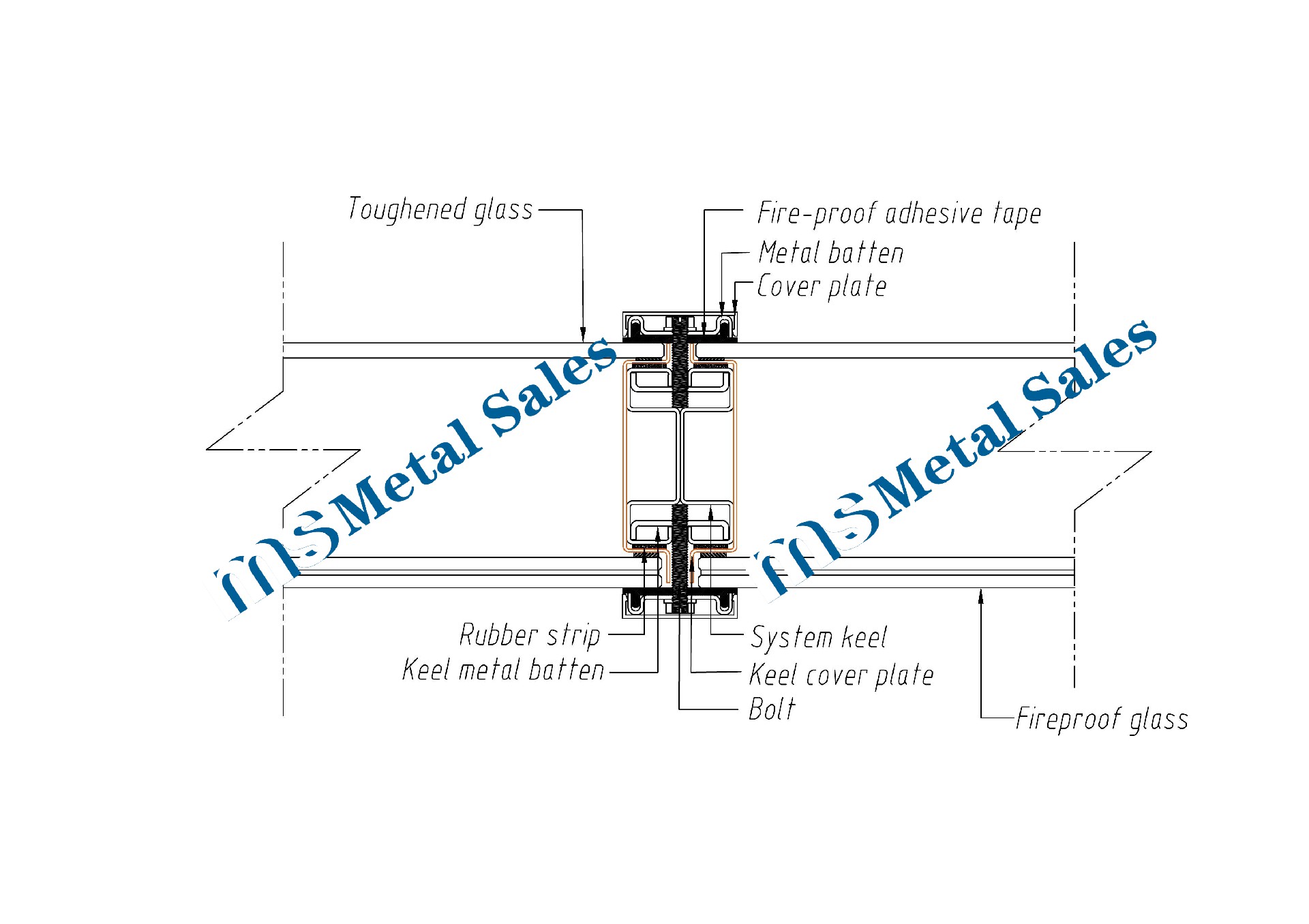

System：Class C 2-hour and ↑3-hour double glass fire pa≥rtition system

Number：ms-P-120

Panel size：
Double glass Single glass fireproof 6+12mm, 8+12mm, 10+12mm, 12+12mm
System thickness: 134mm
Module width: ≤ 1200mm
System height: normal 3000mm
Material: all steel
Width of steel frame: 48mm


Product Introduction：

System：Class A 1-hour single glass fire partition system

Number：ms-P-210

Panel size：
Single layer fireproof glass 25mm
System thickness: 134mm (glass offse≥t)
Module width: ≤ 1200mm
System height: normal 3000mm
Material: all steel
Width of steel frame: 48αmm


Product Introduction：

System：Class A 1-hour double gl ass fire partition system

Number：ms-P-220

Panel size：
Single layer glass Single layer glass fireproof 6+25mm, 8+25mm", 10+25mm
System thickness: 134mm
Module width: ≤ 1200mm
System height: normal 3000mm
Material: all steel
Width of steel frame: 48mm
