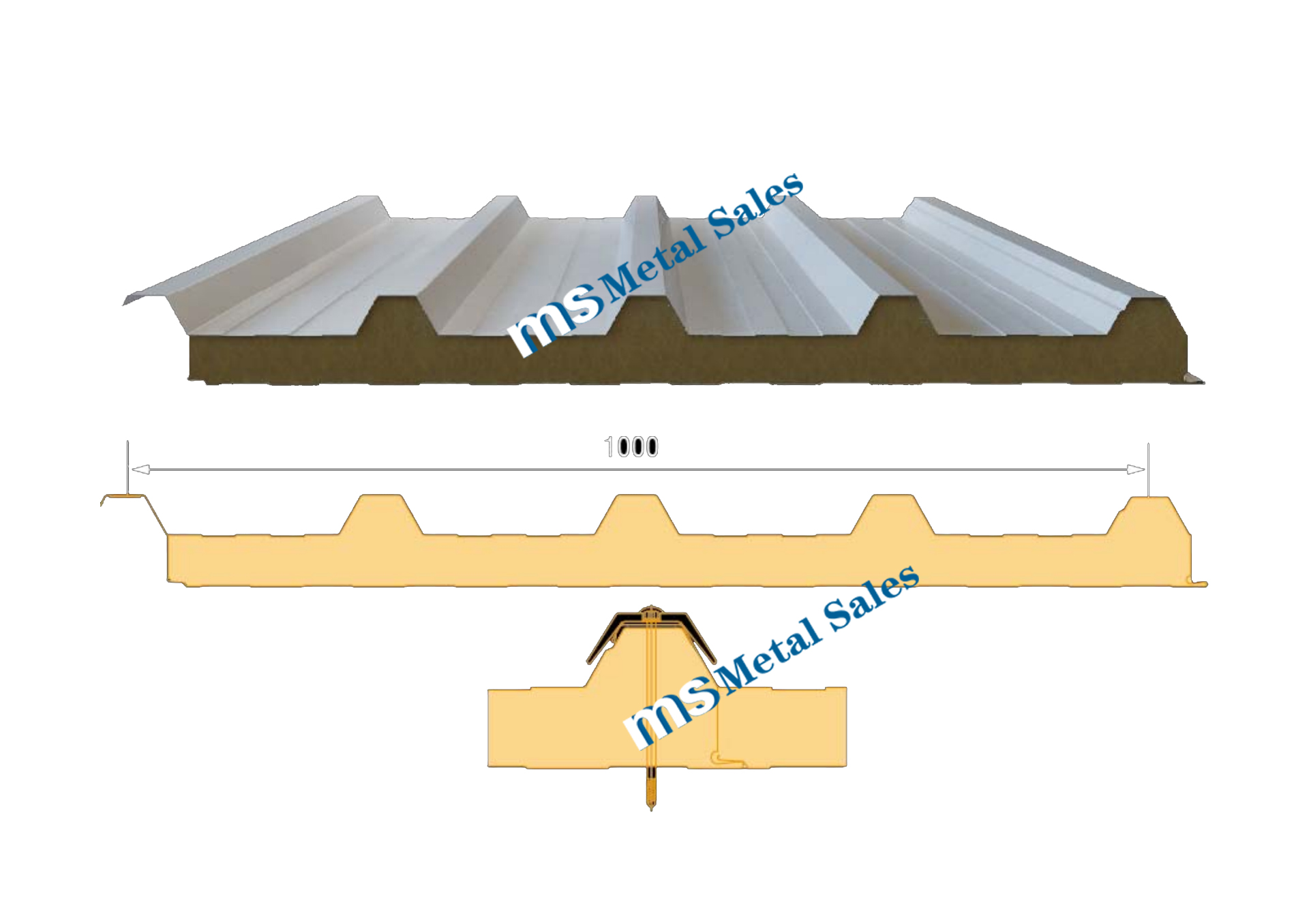

System：Rock wool composite board roπof system
Number：ms-R-Y
Panel size：
Composite plate thickness 50mm, 75m↕m, 100mm
Wave crest height: 40mm
Standard plate width: 1000mm
Thickness of outer steel plate: 0.4mm, 0.5mm, 0.6mm
Outer steel plate coating: pre roll coating (PVDF, SMP, PE)
Thickness of inner steel plate: 0.4mm, 0.5mm, 0.6mm
Internal steel plate coatin∑g: pre roll coating (PSMP, PE)
Core material: rock wool
System：Polyurethane composite board roof™ system
Number：ms-R-J
Panel size：
Composite plate thickness 50mm, 75mm, 100mm
Wave crest height: 40mm
Standard plate width: 1000mm
Thickness of outer steel plate: 0.4mm, 0.5mm, 0.6mm
Outer steel plate coating: pre roll coating (HDPE, SMP, PE)
Thickness of inner steel plate: 0.4mm, 0.5mm, 0.6mm
Internal steel plate coatβing: pre roll coating (SMP, PE)
Core material: polyu₩rethane (PIR, PUR)
System：RS3 roof venee∏r system
Number：ms-R-RS3
Panel size：
Rib height: 76mm
Applicable thickness of material: 0.6-1.2mm
Effective width: standard 457mm
(305, 406mm optional)
Non standard: 250~500mm, any wi✔dth
Minimum fold arc radius of 12m
Special smooth circular arc plate radius 1m
Steel plate coating: pre roll coating (PVDF, HDPE, SMP, PE)
System：RS65 roof veneer system
Number：ms-R-RS65
Panel size：
Rib height: 65mm
Applicable thickness of material: 0.6-1.2mm
Effective width: standard 400mm
(300, 500mm optional)
Non standard: 258~500₹mm, any width
The minimum radius of smooth arc is 1.5m, and the fo ld arc is 0.5m
Steel plate coating: pre roll coating (HDPE, SM®P, PE)
System：RS360 roof veneer system
Number：ms-R-RS360
Panel size：
Rib height: 65mm
Applicable thickness of material: 0.53-0.8mm
Effective width: standard 495mm
Natural arc, arc radius greater than 40m
Steel plate coating: pre roll coating (HDPE±, SMP, PE)
